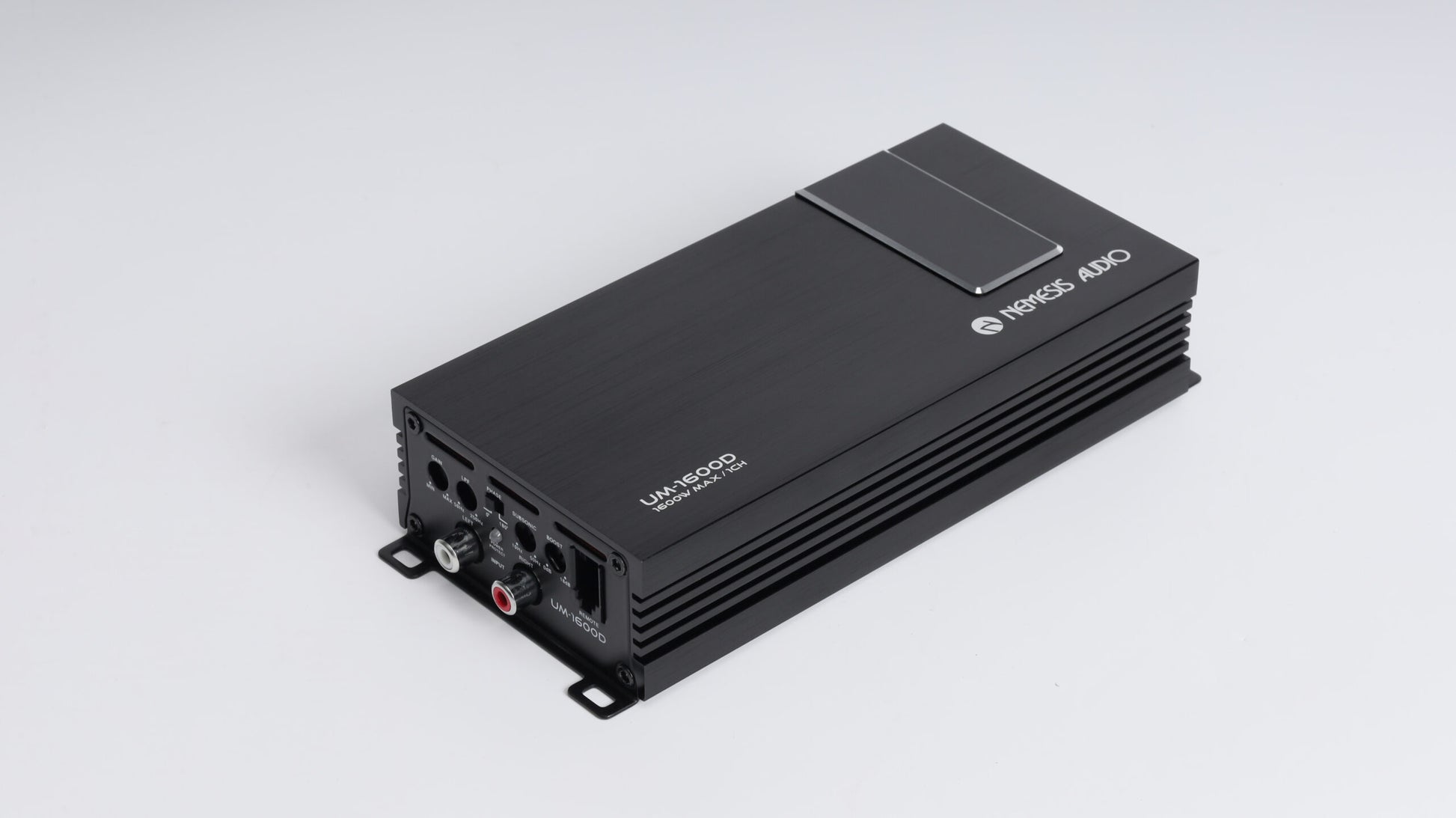

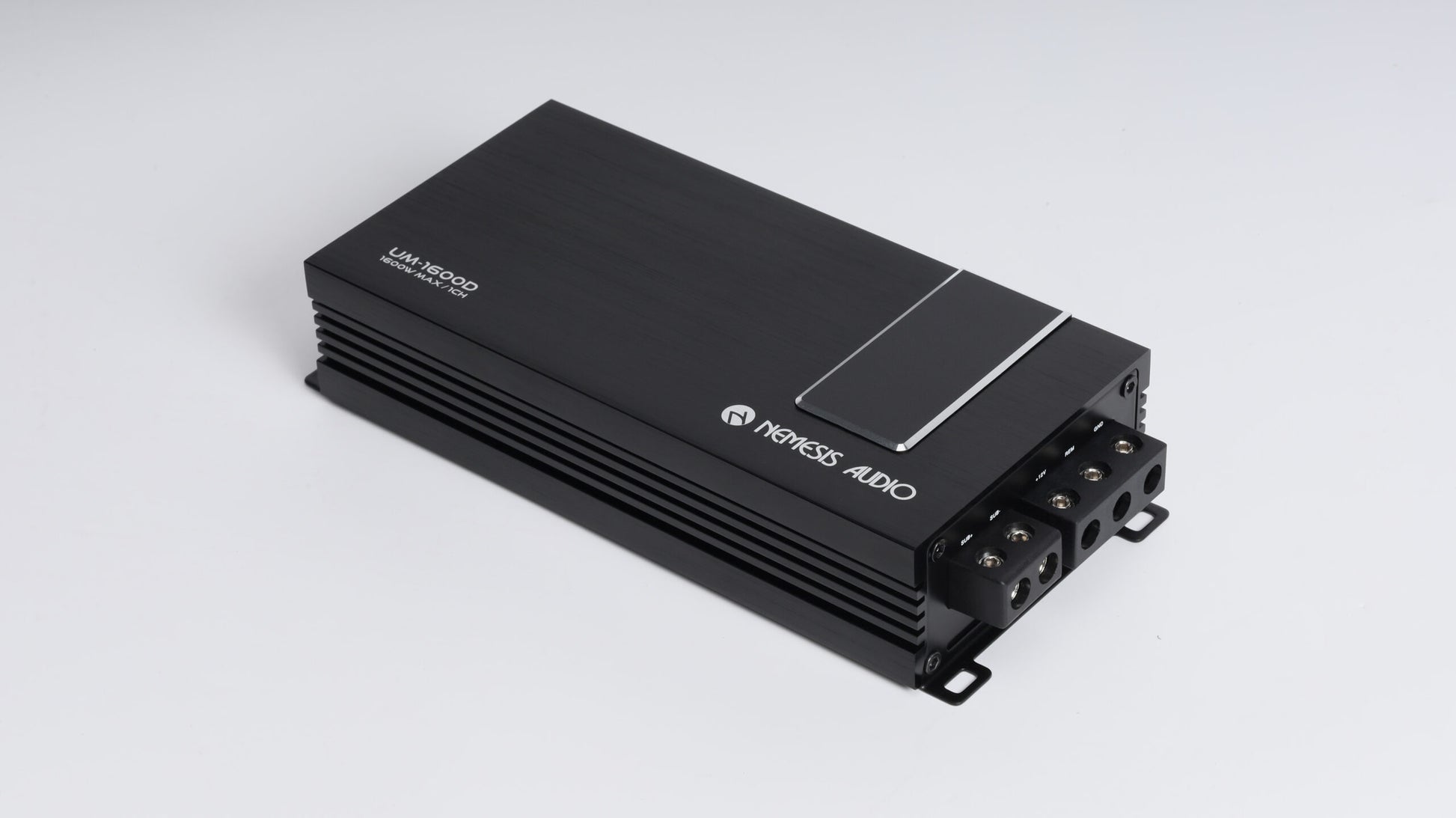

UM-1600D

1600W Max/800W RMS Ultra Micro Class D Amp

• Max/ RMS Power (@ 14.4V, < 1% T.H.D.):
  • 1600W MAX/ 800W RMS @ 1Ω
  • 1160W MAX / 580W RMS @ 2Ω
  • 720W MAX/ 360W RMS @ 4Ω
• Frequency Response: 20Hz – 500Hz
• Crossover Range: 50Hz – 250Hz
• Input Sensitivity: 0.25V – 10V
• Signal-to-Noise Ratio: > 90 dB
• Total Harmonic Distortion (T.H.D.): < 0.3%
• Dimensions: 188.7mm x 84.4mm x 40.5mm (or 7.43″ x 3.33″ x 1.6″)
