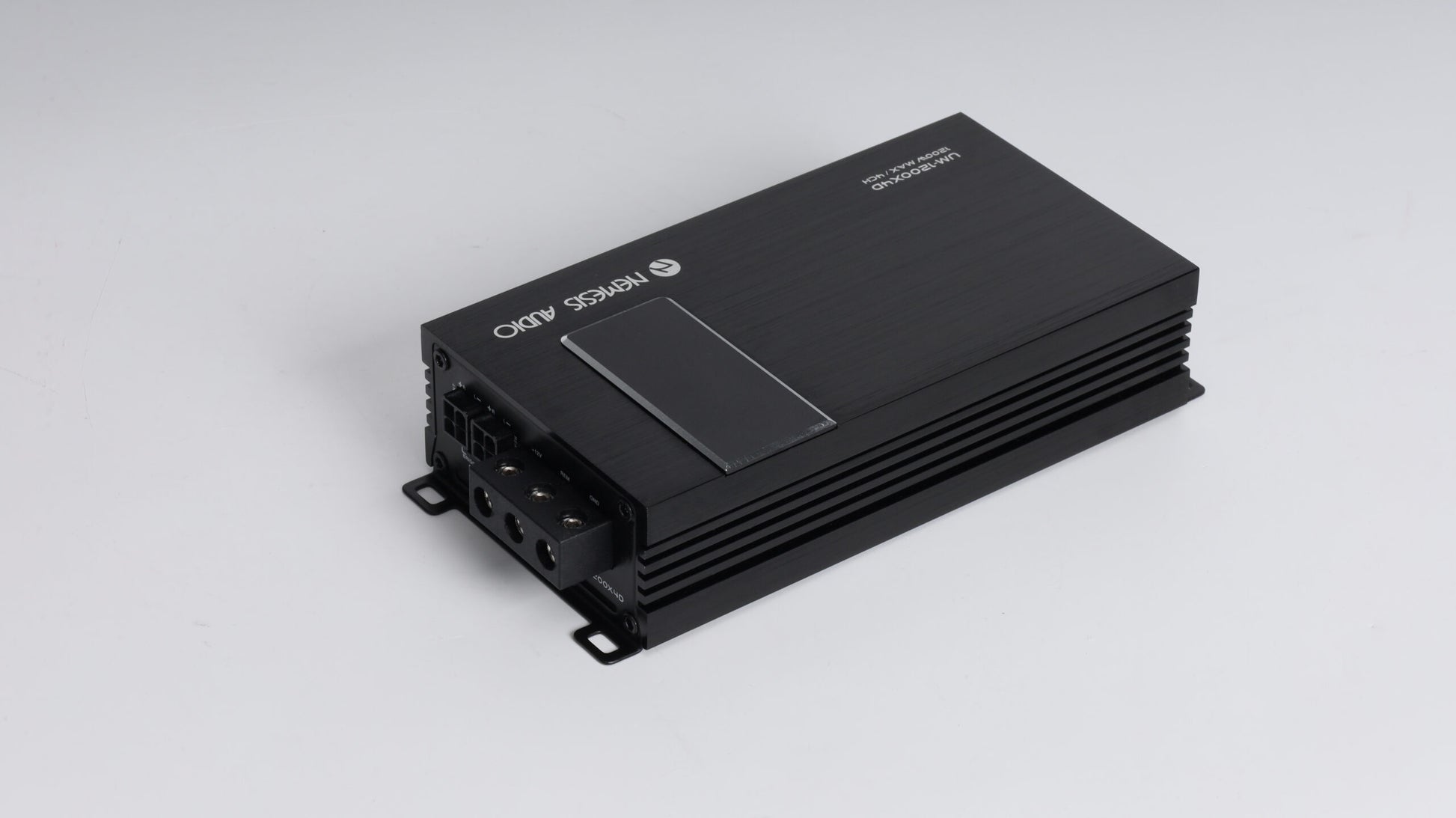

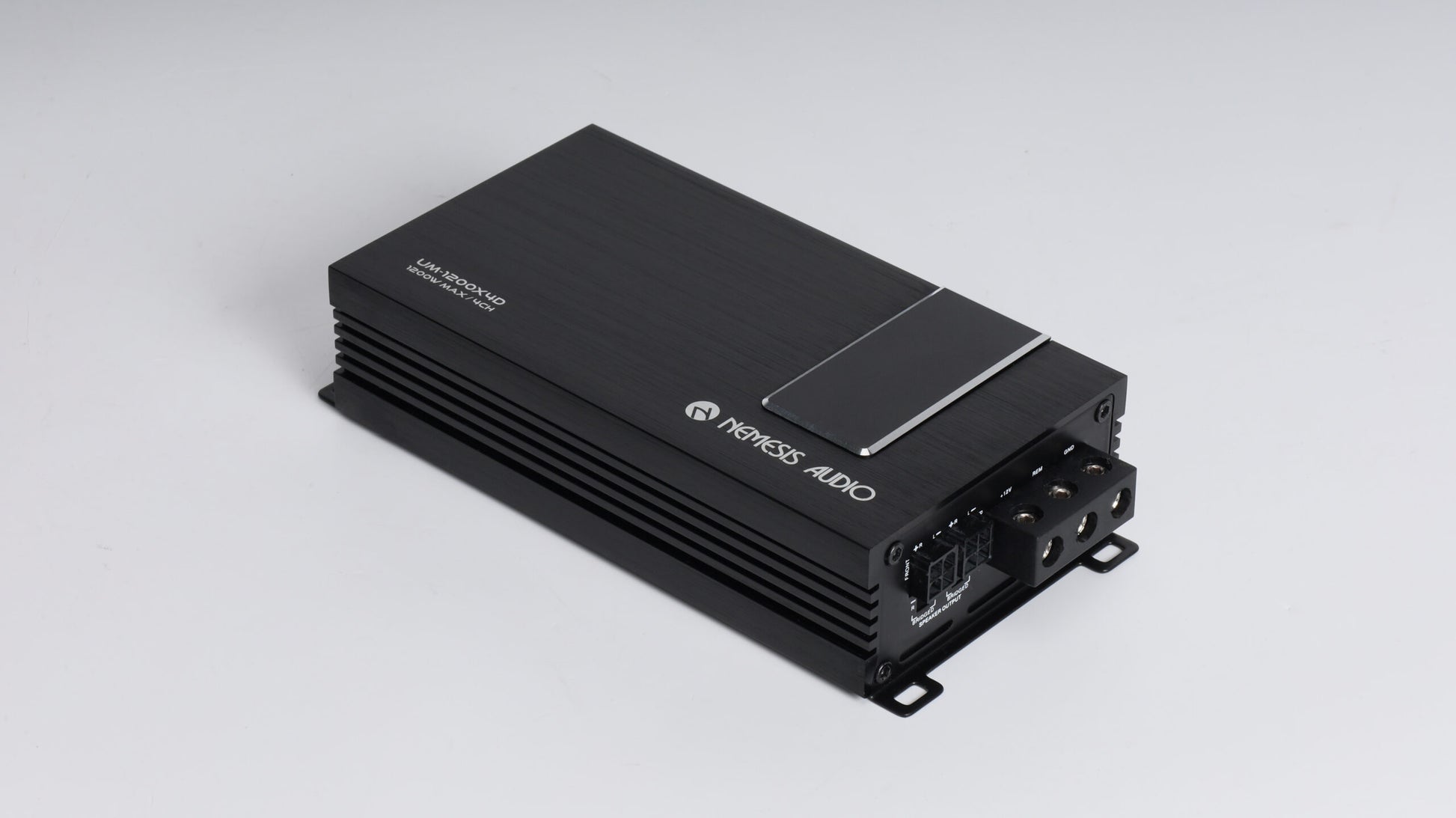

UM-1200X4D

1200W Max/ 600W RMS 4-Channel Ultra Micro Class D Amplifier

• Max/ RMS Power (@ 14.4V, < 1% T.H.D.):
  • 200W x 4CH MAX / 100W x 4CH RMS @ 4Ω
  • 300W x 4CH MAX / 150W x 4CH RMS @ 2Ω
  • 600W x 2CH MAX/ 300W x 2CH RMS @ 4Ω (Bridged)
• Frequency Response: 20 Hz – 20 kHz
• Crossover Range: 40 Hz – 400 Hz
• Input Sensitivity: 0.25V – 10V
• Signal-to-Noise Ratio: > 90 dB
• Total Harmonic Distortion (T.H.D.): < 0.3%
• Dimensions: 171.7mm x 84.4mm x 40.5mm (or 6.76″ x 3.33″ x 1.6″)
