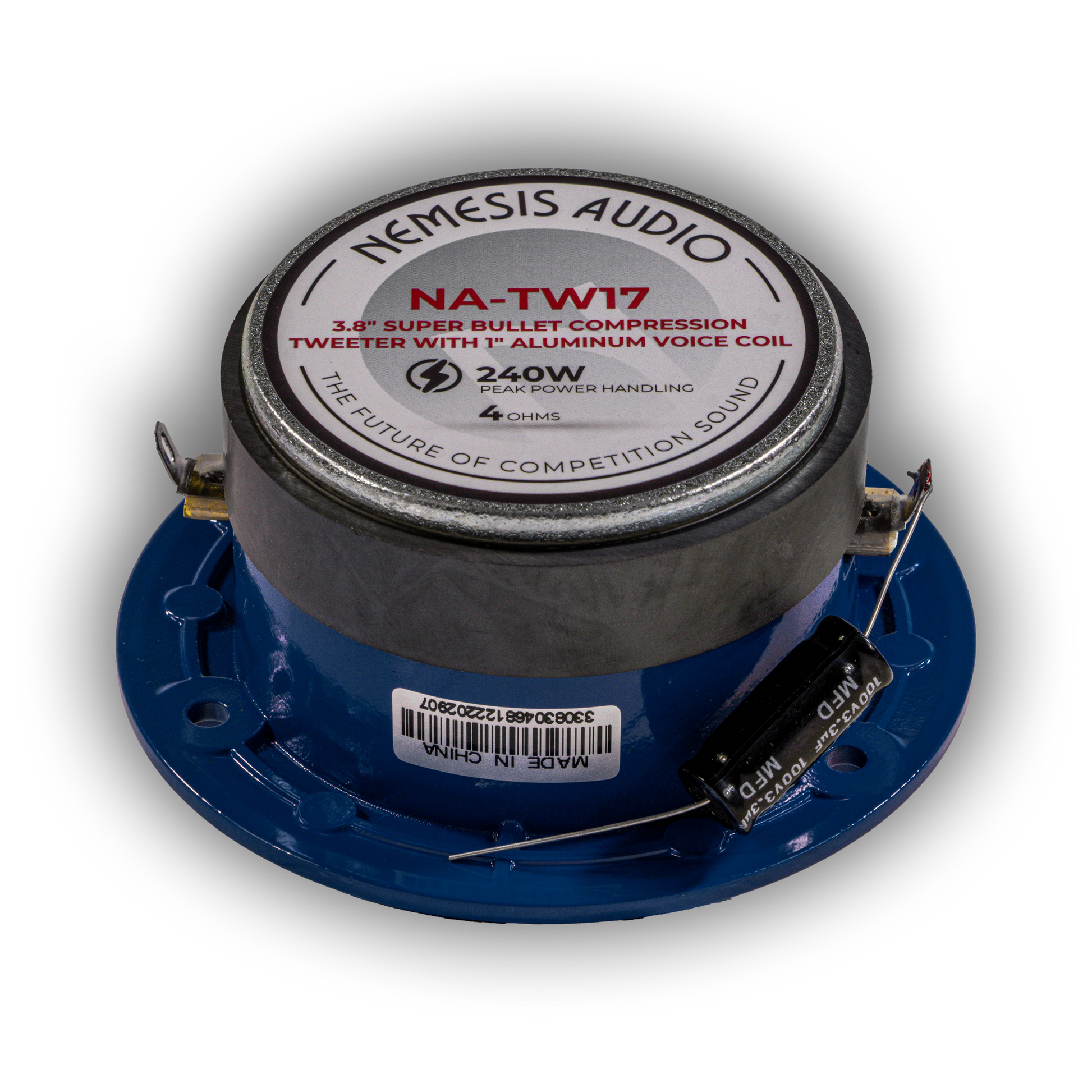

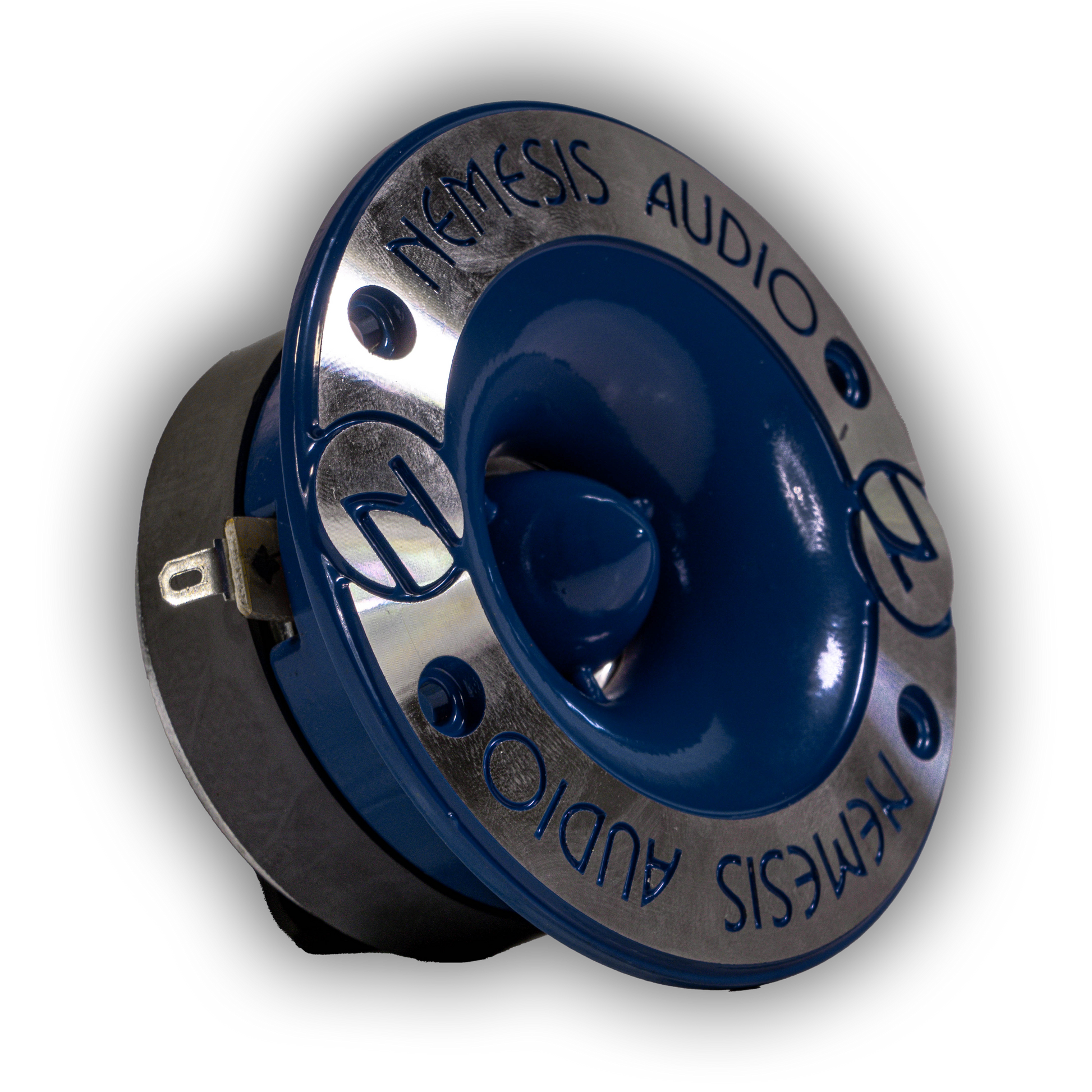

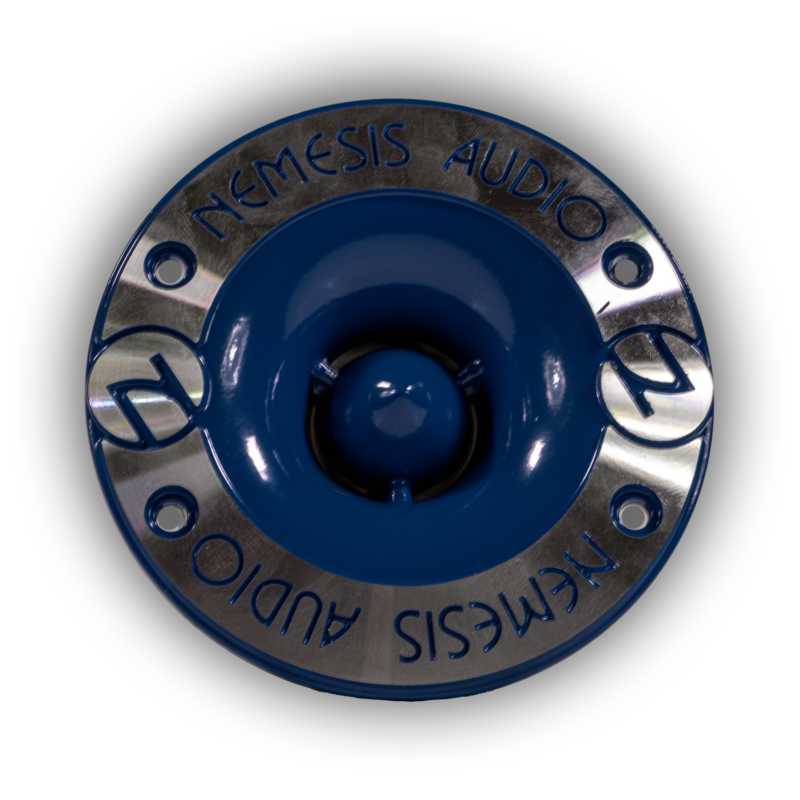

NA-TW17

3.8″ Super Bullet Compression Tweeter 240W Max 120W RMS 1″ Aluminum Voice Coil 4-Ohm

Nominal Diameter: 3.8″ / 96mm
Nominal Impedance: 4-Ohm
AES Power Handling: 60W
Program Power Handling: 120W
Peak Power Handling: 240W
Sensitivity (1W/1m): 103dB
Frequency Response: 3.5kHz-20kHz
Body Material: Aluminum
Body Color: Glossy Blue
Faceplate Color: Glossy Blue
Bullet Material: Aluminum
Voice Coil Diameter: 1″ / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 8 Oz
