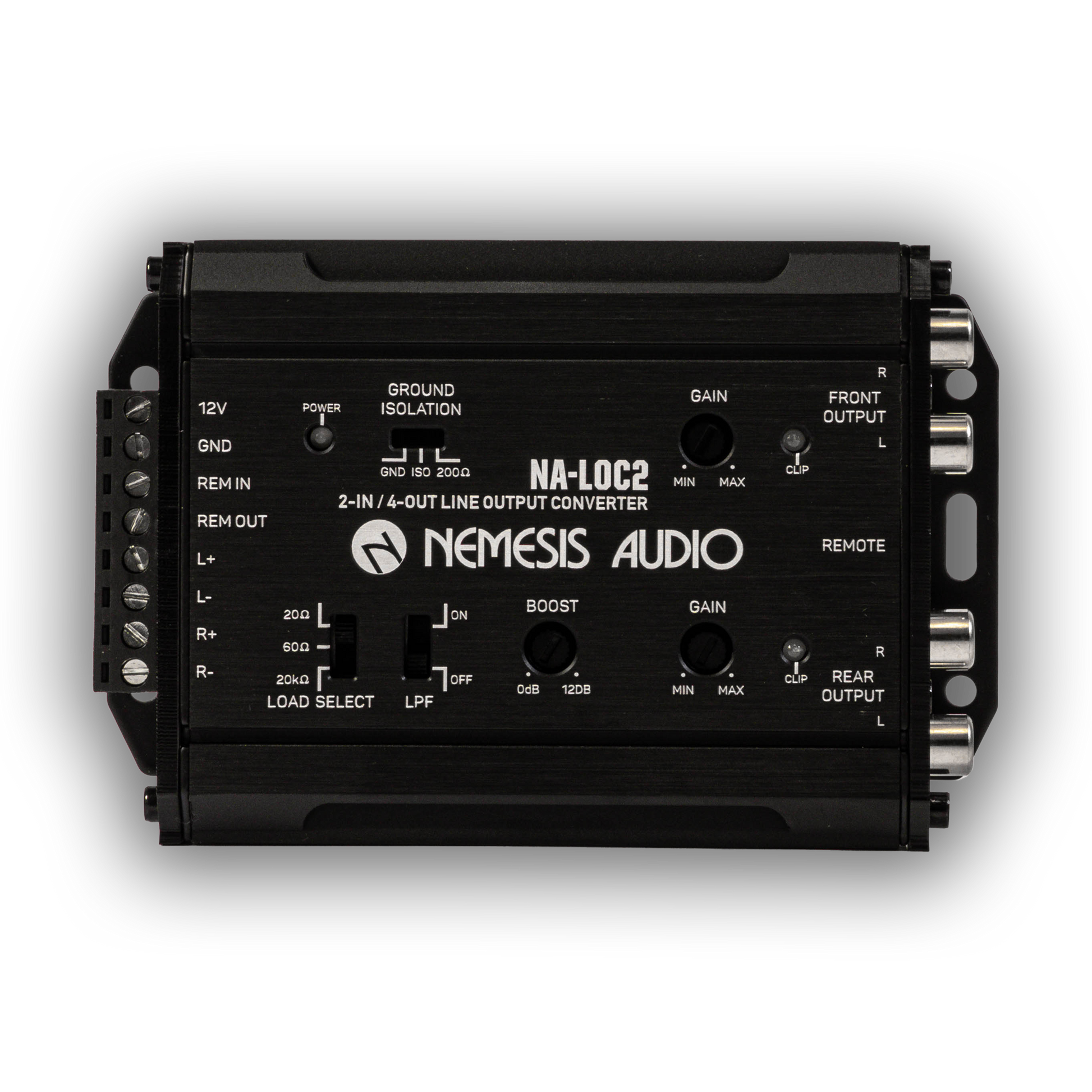

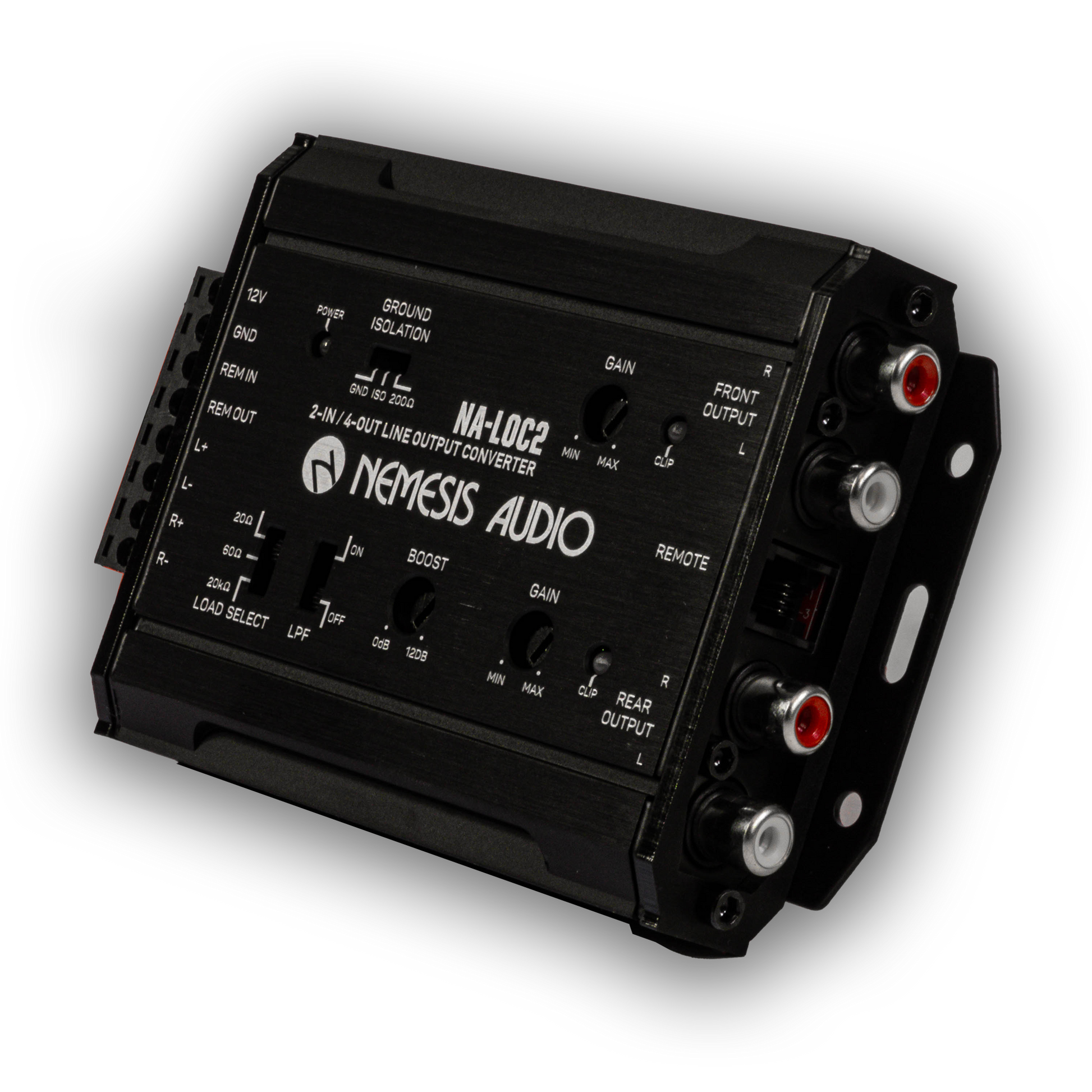

Active Line Output Converter and Line Driver 2 Channels of Speaker-Level Inputs Handle up to 40V 4 Channels of RCA Outputs Provide up to 9.5V of Output Designed to Work with Factory Audio Systems Wired Remote Bass Level Control Included Load Selection Switch (20, 60, or 20K Ohms) to Prevent Factory Stereo Shut-Down Adjustable 0-12dB Bass Boost (Fixed at 45Hz) Selectable Full Range or Low Pass Filter Switch (LPF for Rear Channel Only): 250Hz 12V Turn-On Output for Aftermarket Amplifiers Selectable Ground Isolation Switch to Eliminate Ground and Alternator Noise Molex Terminals for Speaker Signal and Power LED Clip Indicator Total Harmonic Distortion (THD): 0.01% Signal to Noise Ratio: >110dB Frequency Response: 10-20,000Hz
