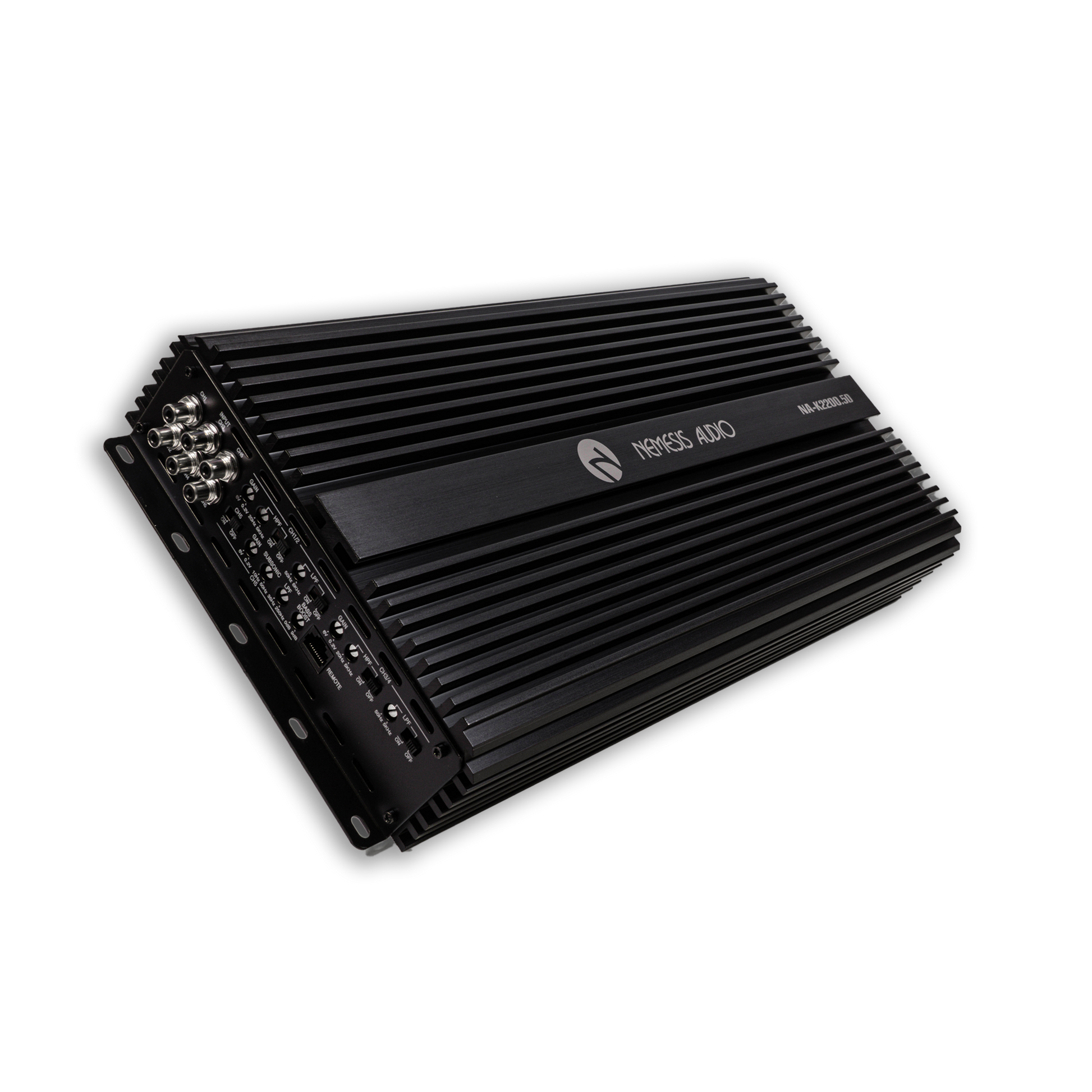

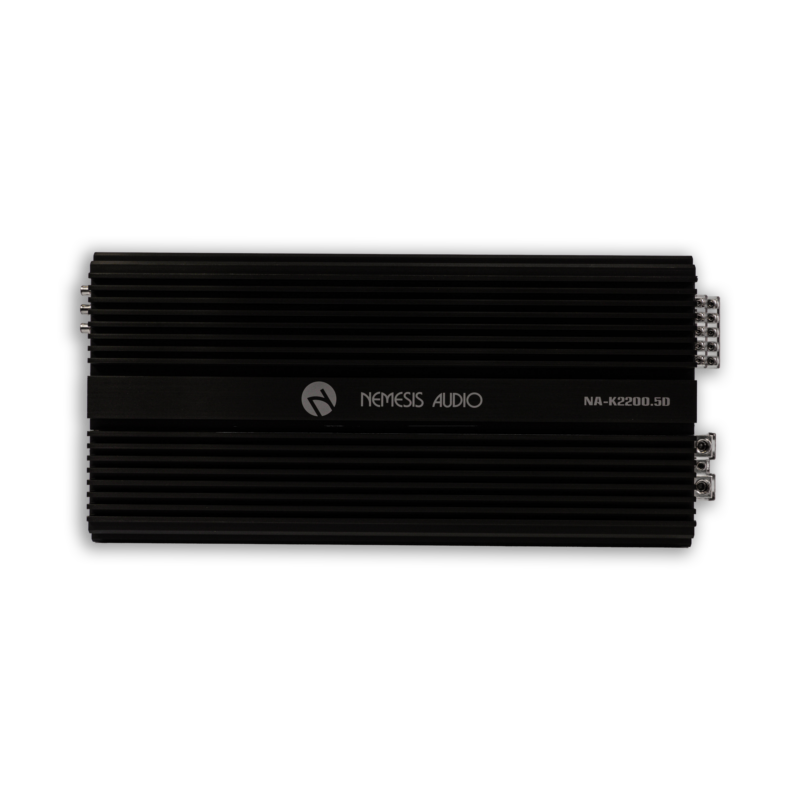

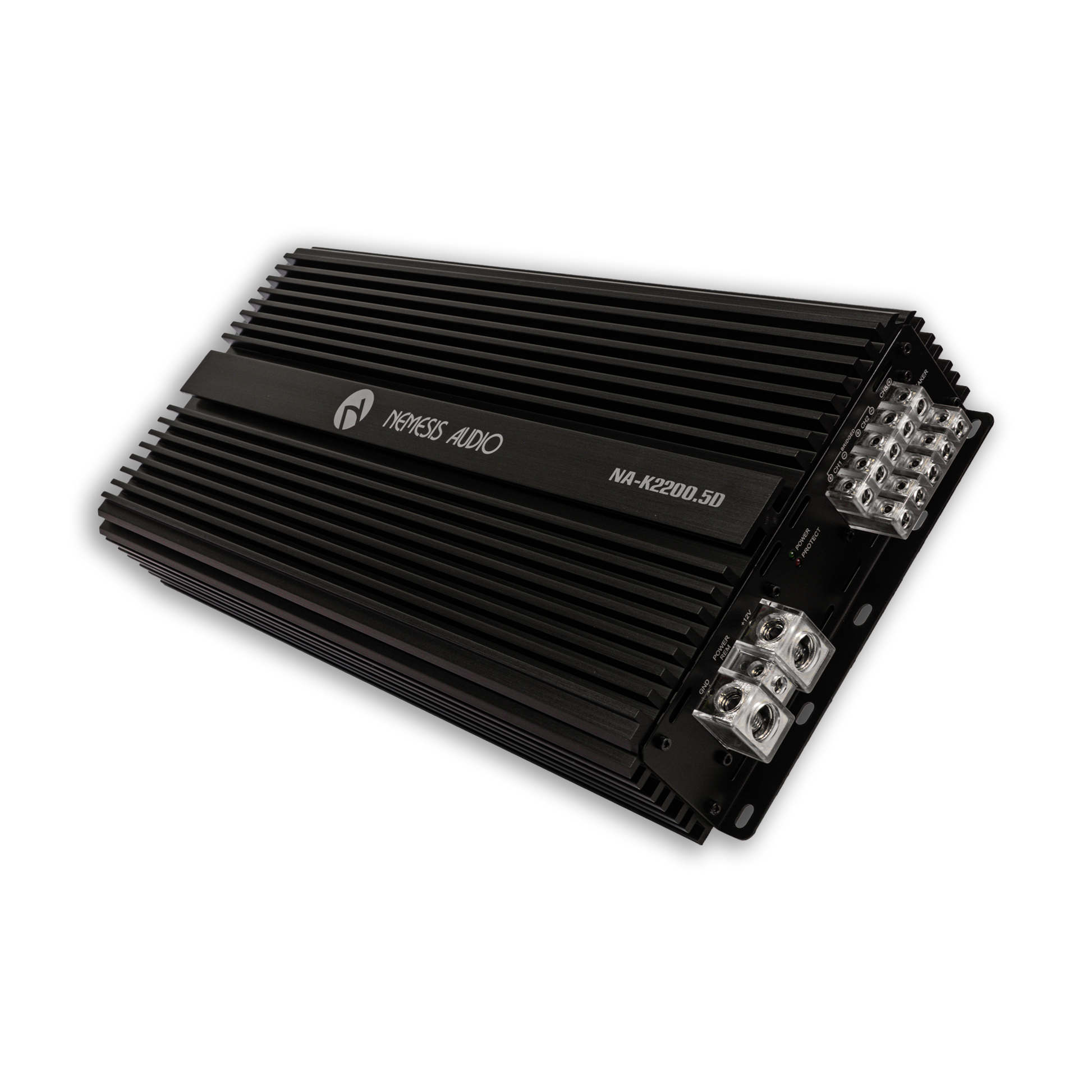

NA-K2200.5D
NA-K2200.5D
2200W 5-Channel Class D Monoblock Car Amplifier Made In Korea Team Series
Made in Korea
2200W 5CH
4-Ohm RMS Power: 125Wx4 + 600Wx1
2-Ohm RMS Power: 190Wx4 + 1100Wx1
1-Ohm RMS Power: 1,500Wx1
4-Ohm RMS Bridged Power: 380Wx2 + 600Wx1
Frequency Response: 10Hz-30KHz for CH1-4; 10Hz-250Hz for CH5
Signal to Noise Ratio: 95dB < Damping Factor: 200dB < Efficiency (4-Ohm, 100Hz) : 75% for CH1-4; 90% for CH5 Input Sensitivity: 6V-0.2V Subsonic Filter: 10Hz-50Hz @ 24dB/Oct Bass Boost: 0-9dB @ 45Hz Low Pass Filter: 50Hz-5KHz for CH1-4 35Hz-250Hz for 5CH High Pass Filter: 20Hz-5KHz Audiophile Grade Tiffany RCA Input & Output 0 Gauge Power & Ground Input Working Voltage: 10V-16V Tested Voltage & THD: 14.4V & Less than 1% Remote Gain Control with Clipping Indicator 4 Way Protection Circuits (Thermal, High & Low Voltage, Short & DC) Dimensions (LxWxH): 450x220x68mm
