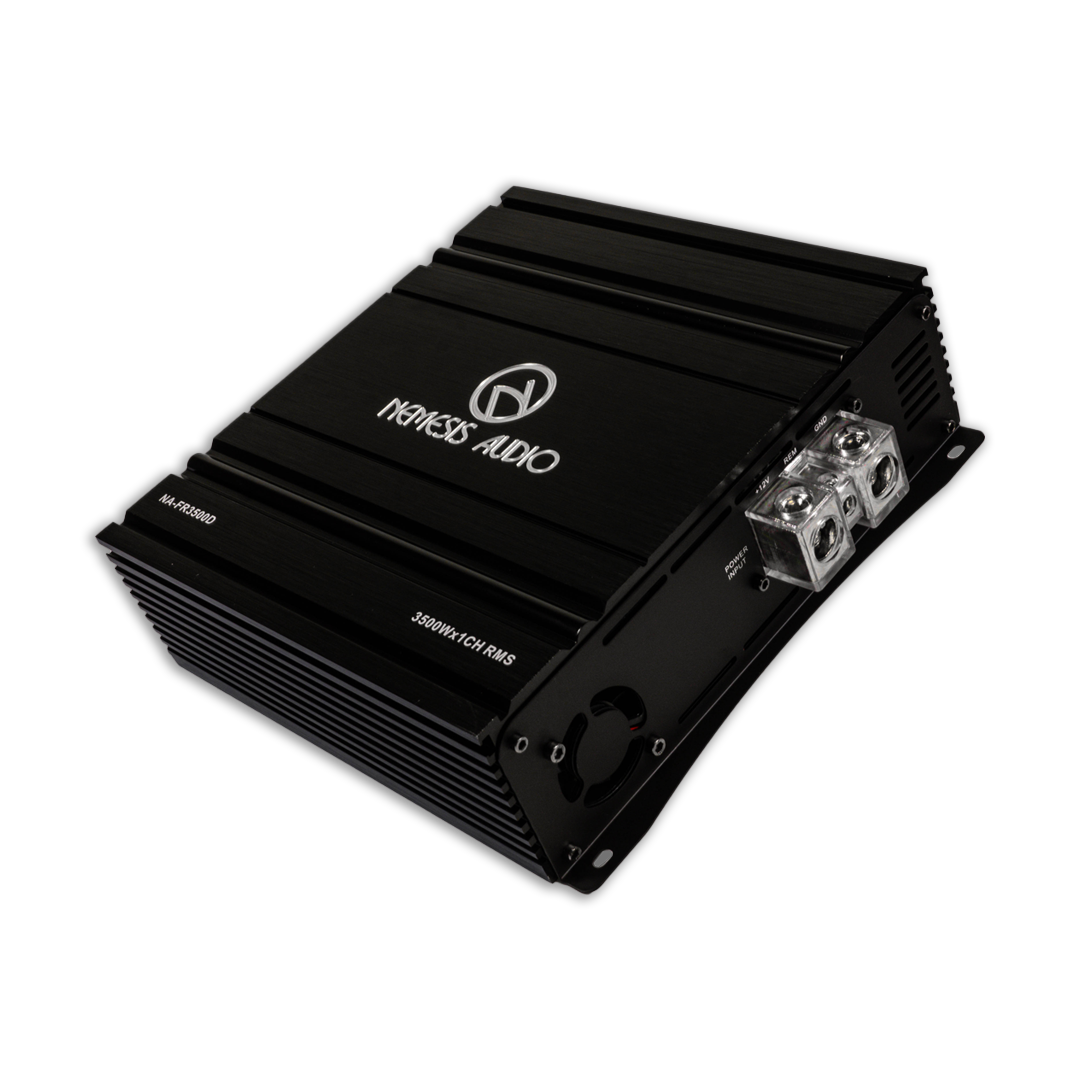

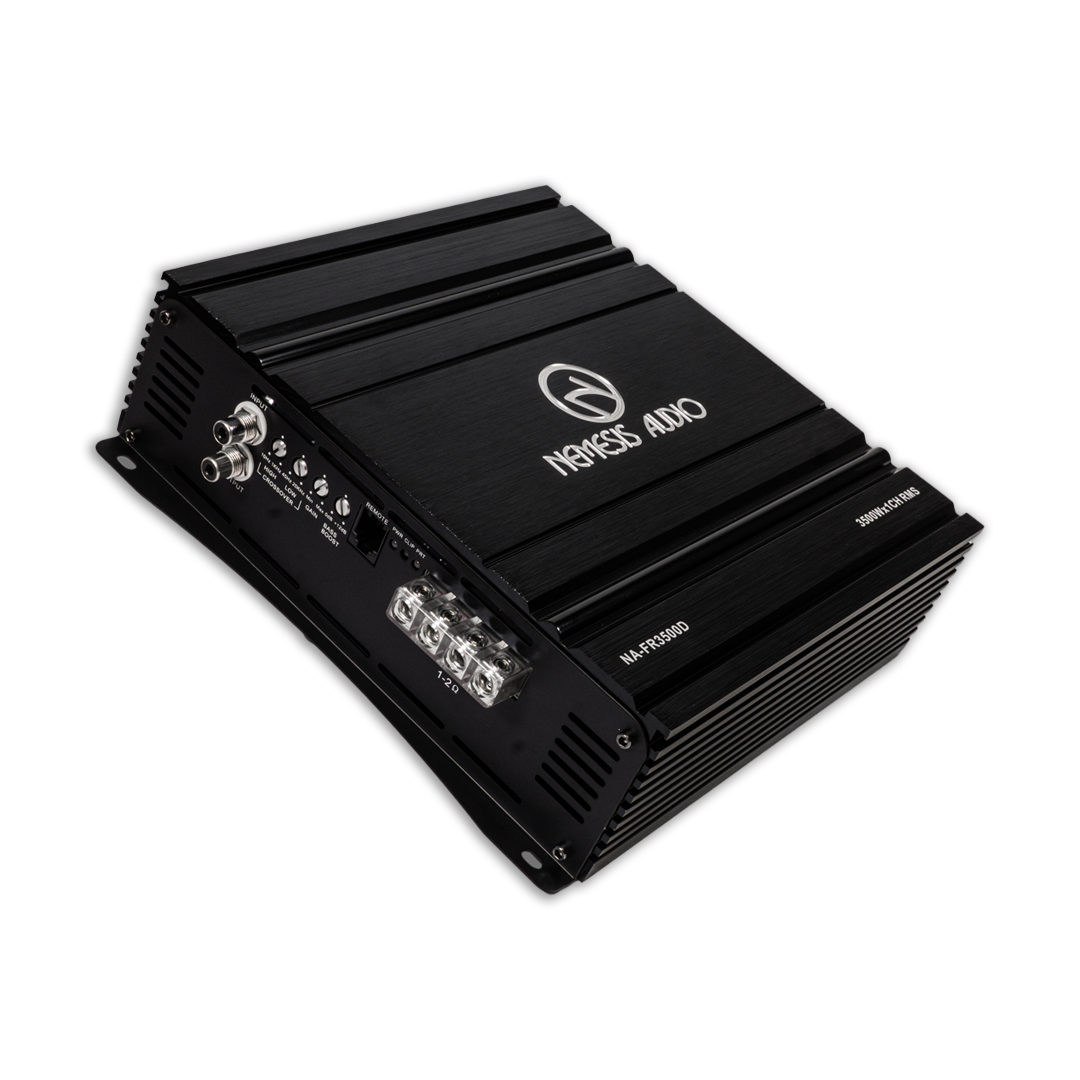

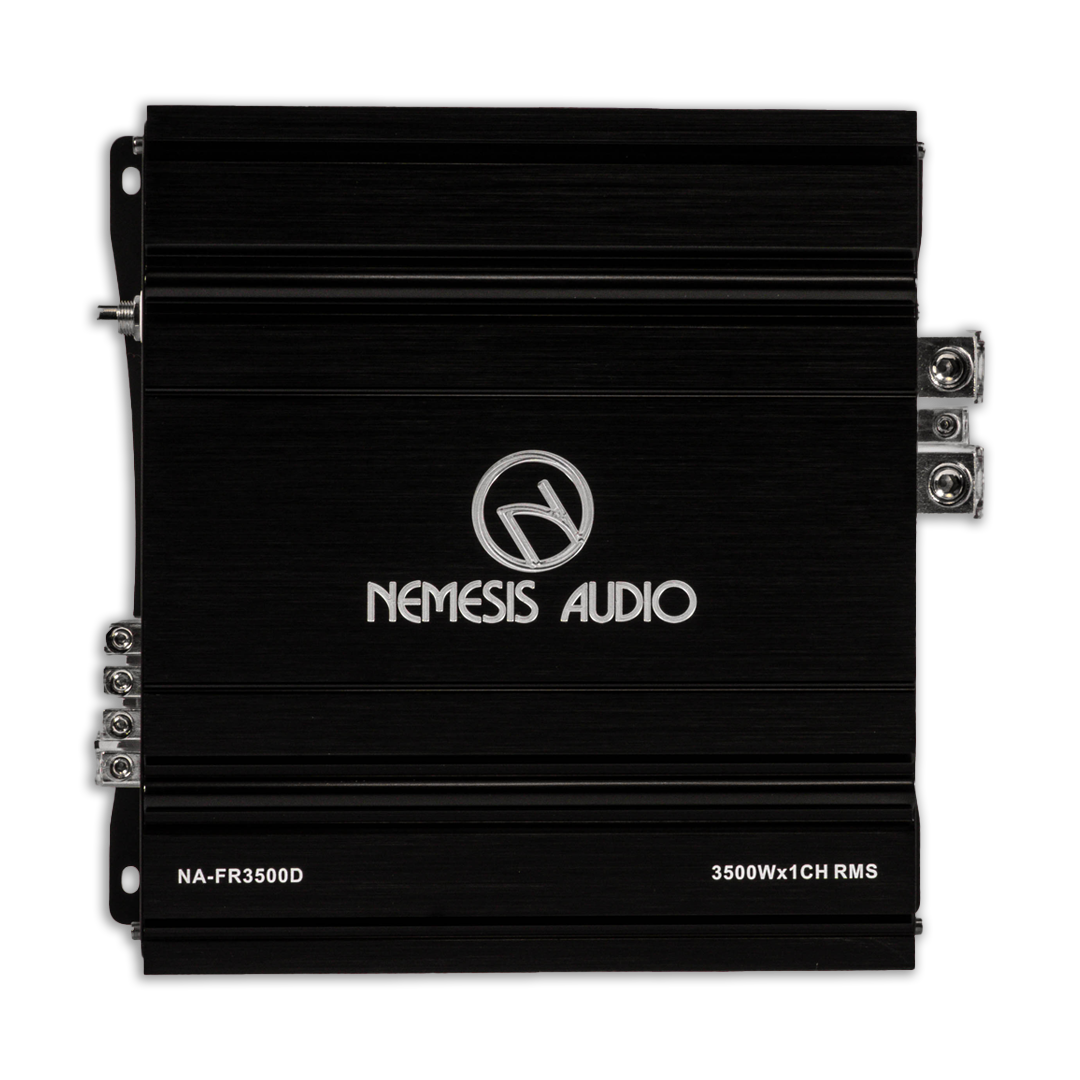

NA-FR3500D

1-Channel Monoblock Full Range Car Amplifier 3500 Watts @ 1-Ohm

1 Ch Full-Range Class D Amplifier
RMS Output Power @ 14.4V (4-Ohm) 3,000W RMS
RMS Output Power @ 14.4V (2-Ohm) 3,250W RMS
RMS Output Power @ 14.4V (1-Ohm) 3,500W RMS
Input Sensitivity: 200MV
Signal to Noise Ratio: 100dB Frequency Response: 10Hz-20KHz (-3dB)
Crossover: H.P.F. (High Pass Filter) 10 to 1 KHz(-12dB/8) Variable
L.P.F. (Low Pass Filter) 40Hz-20 KHz(-12dB/8) Variable
Bass Boost: 0-12dB (50Hz)
Input Impedance: 56k Ohms
Protection System: Output Short/High/Low Supply
Voltage/Thermal Protection
Minimum Supply Voltage: 9V
Maximum Supply Voltage: 16V
