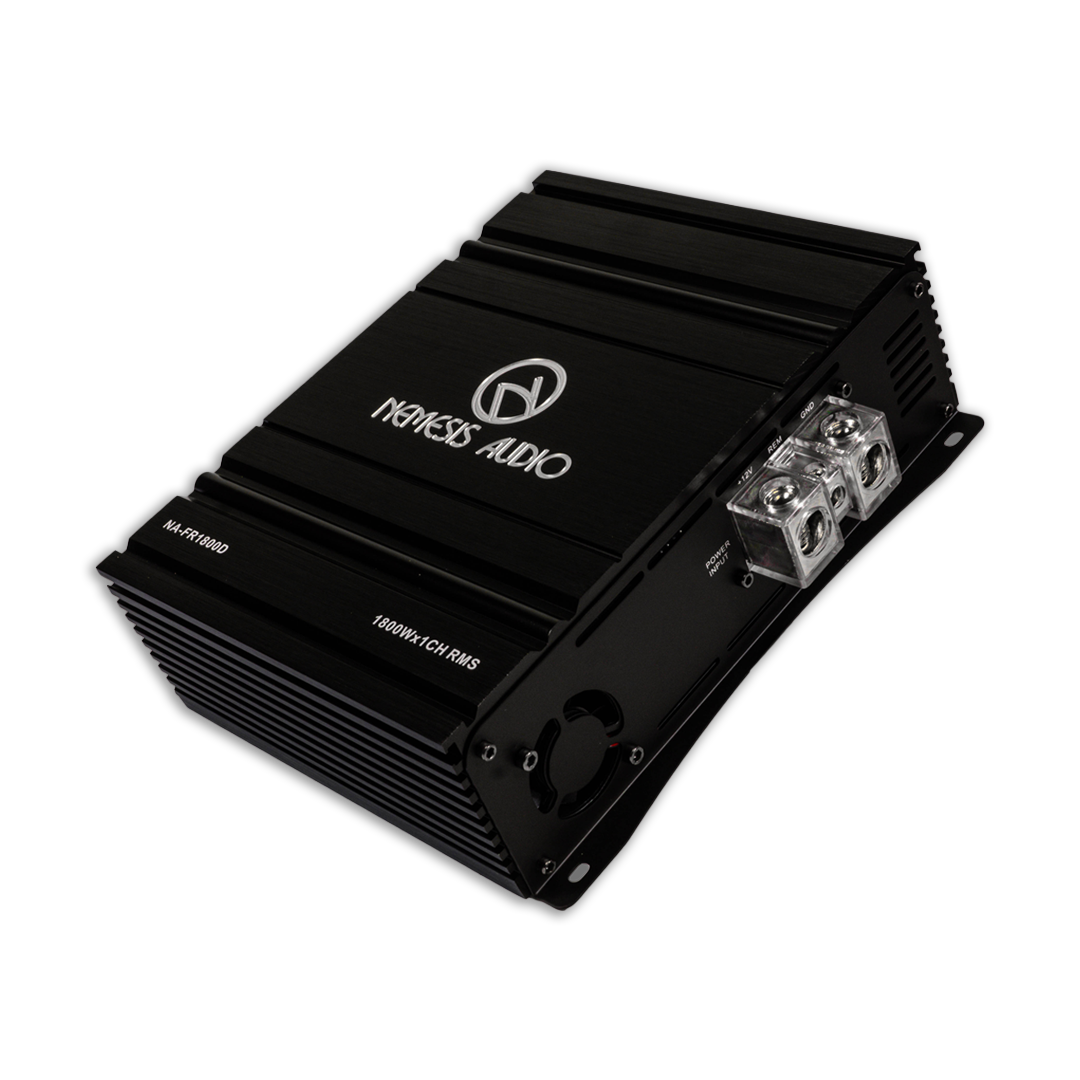

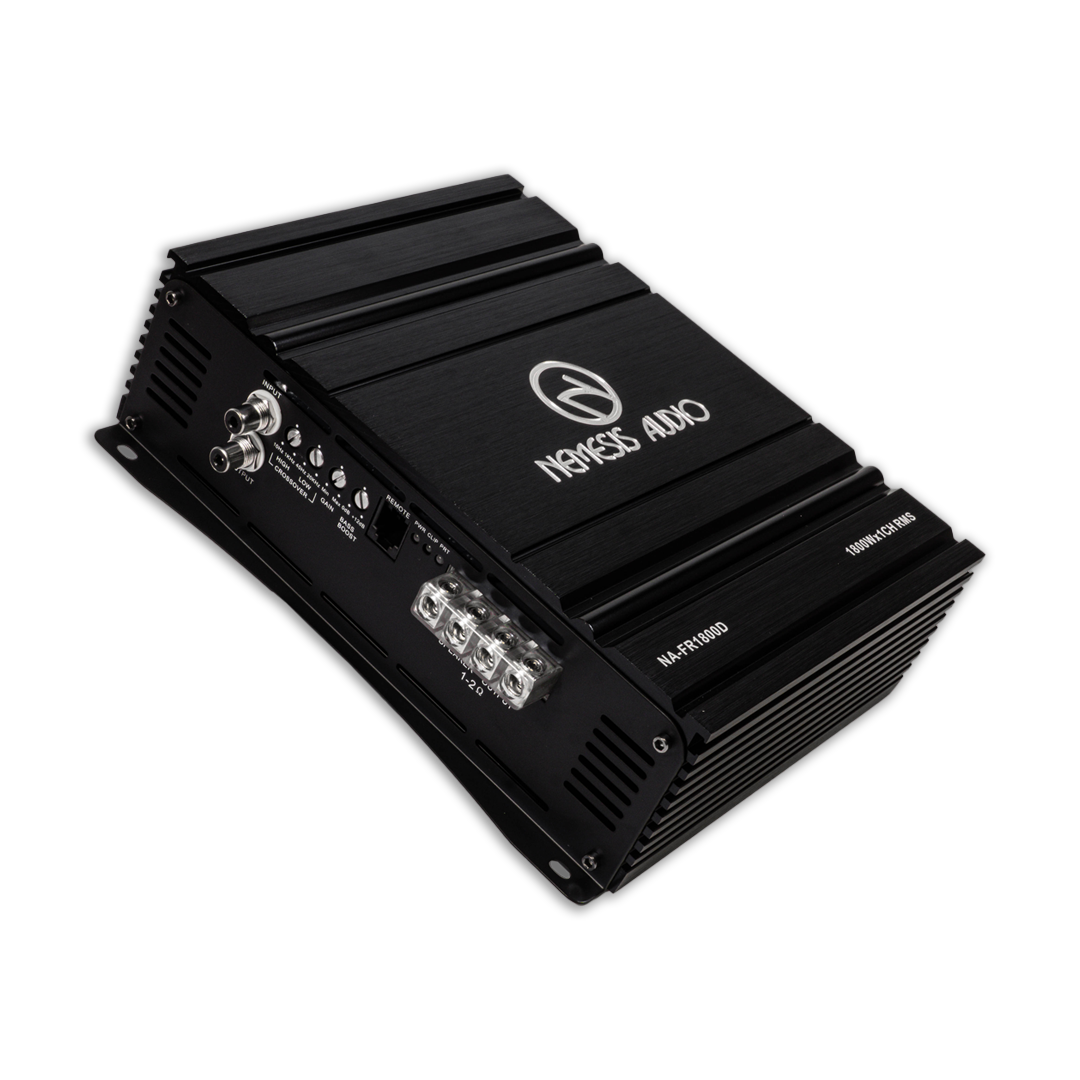

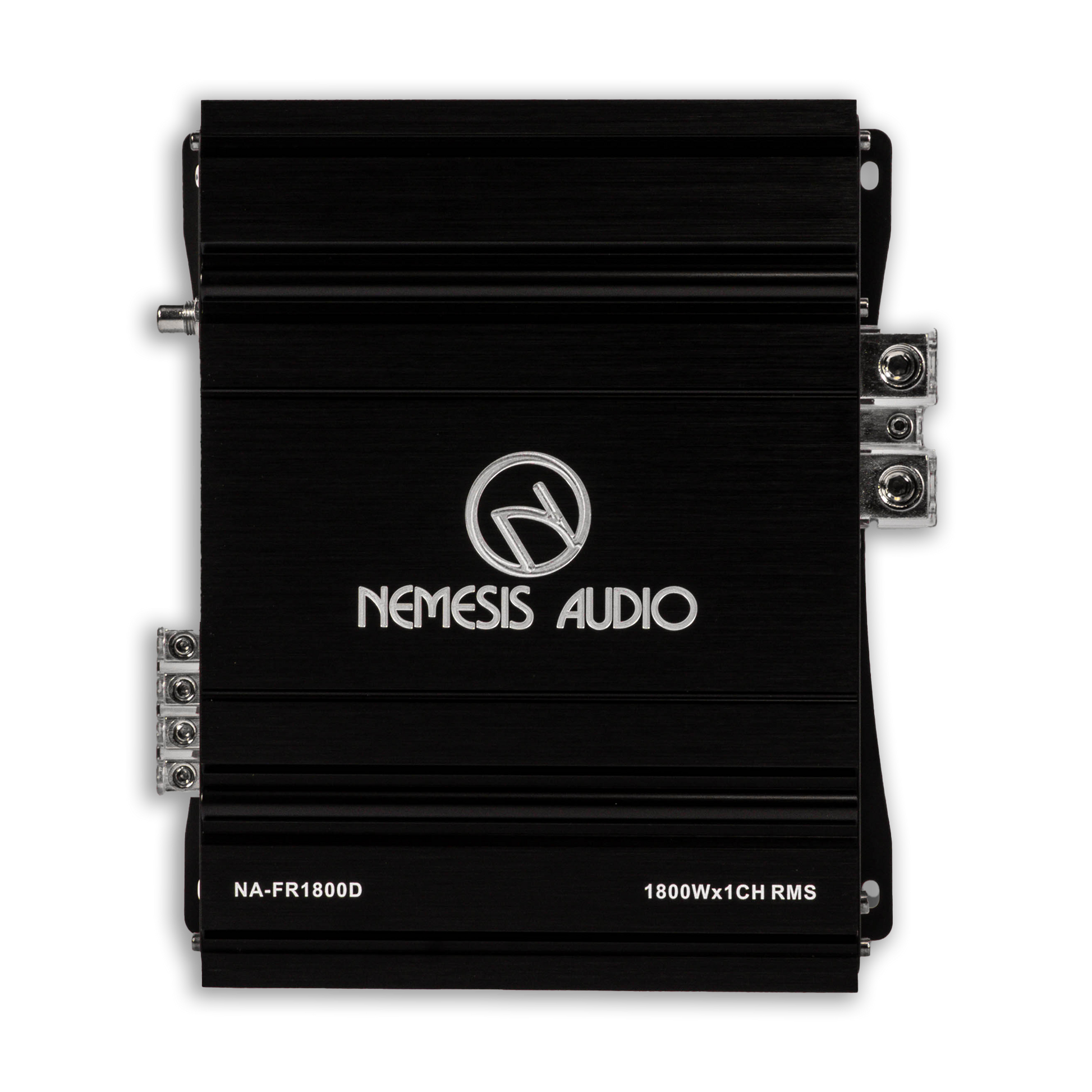

NA-FR1800D

1800W RMS 1-Channel Monoblock Full Range Car Amplifier

1 Ch Full-Range Class D Amplifier
Maximum Output Power @ 14.4V (4-Ohm) 1,300W RMS
Maximum Output Power @ 14.4V (2-Ohm) 1,550W RMS
Maximum Output Power @ 144V (1-Ohm) 1,800W RMS
Input Sensitivity: 200MV
Signal-to-Noise Ratio: 100dB
Frequency Response: 10Hz-20KHz (-3dB)

Crossover:
H.P.F. (High Pass Filter) 10-1KHz(-12dB/8) Variable
L.P.F. (Low Pass Filter) 40-20KHz(-12dB/8) Variable
Bass Boost: 0-12dB (50Hz)
Input Impedance: 56k Ohms
Protection System: Output Short/High/Low Supply
Voltage/Thermal Protection
Minimum Supply Voltage: 9V
Maximum Supply Voltage: 16V
