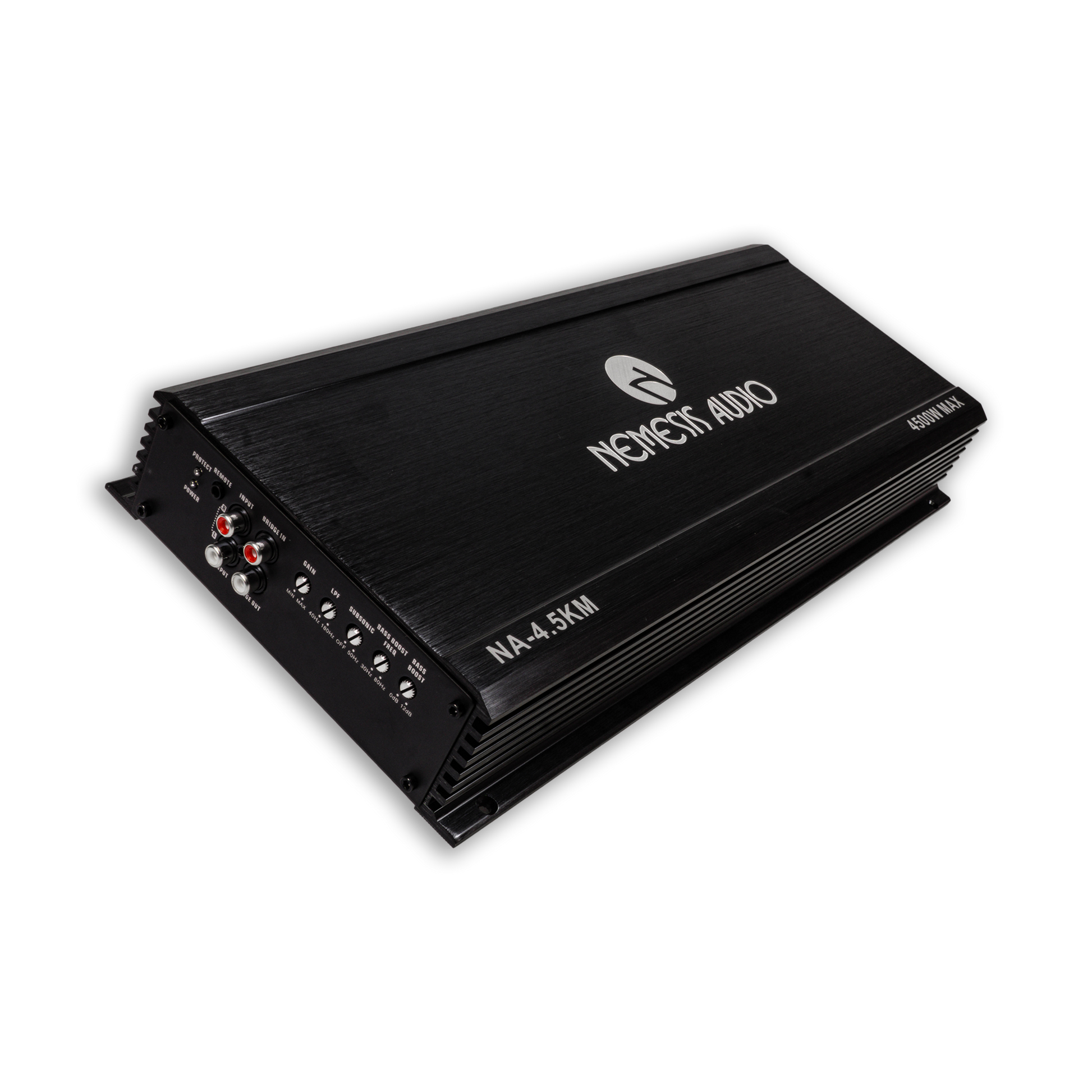

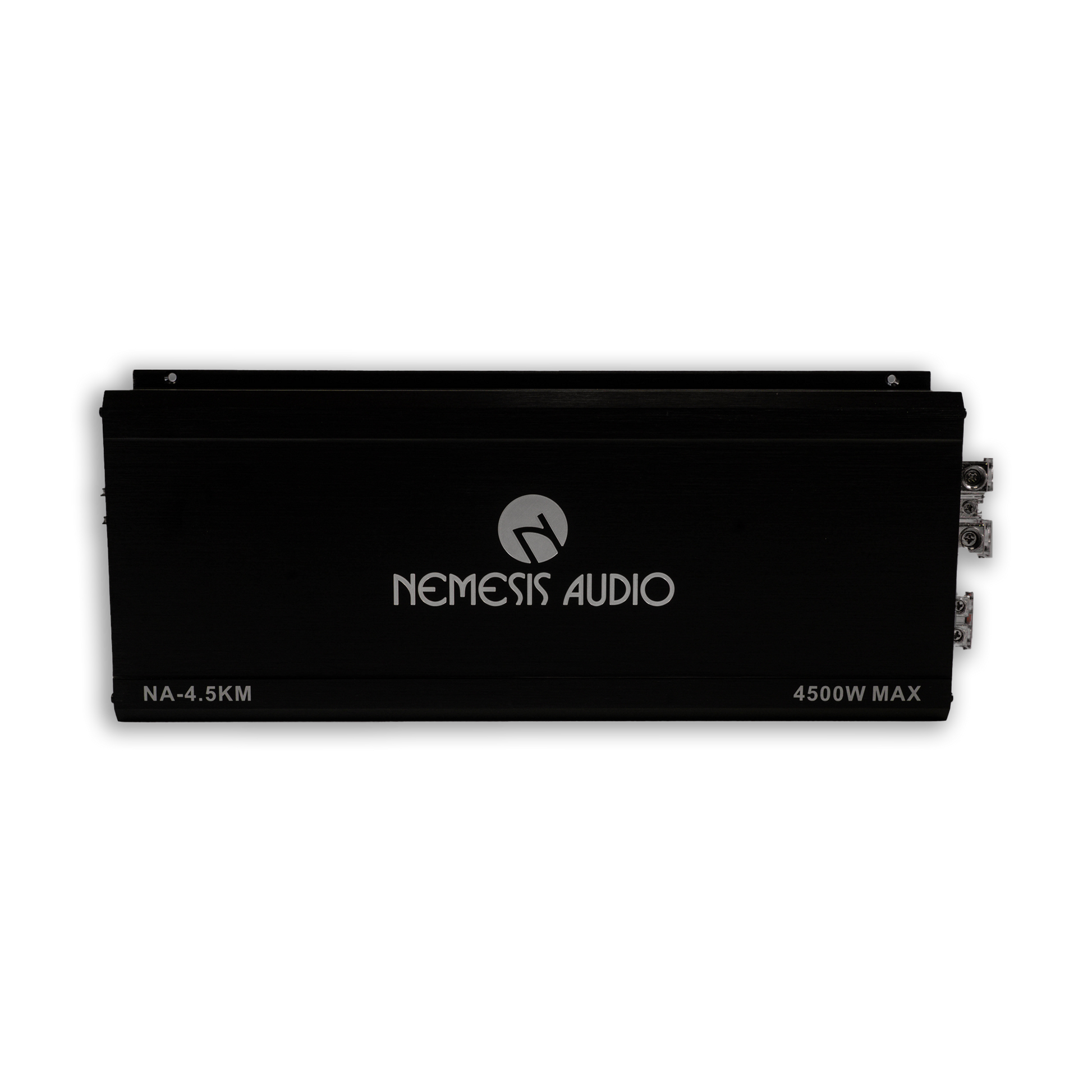

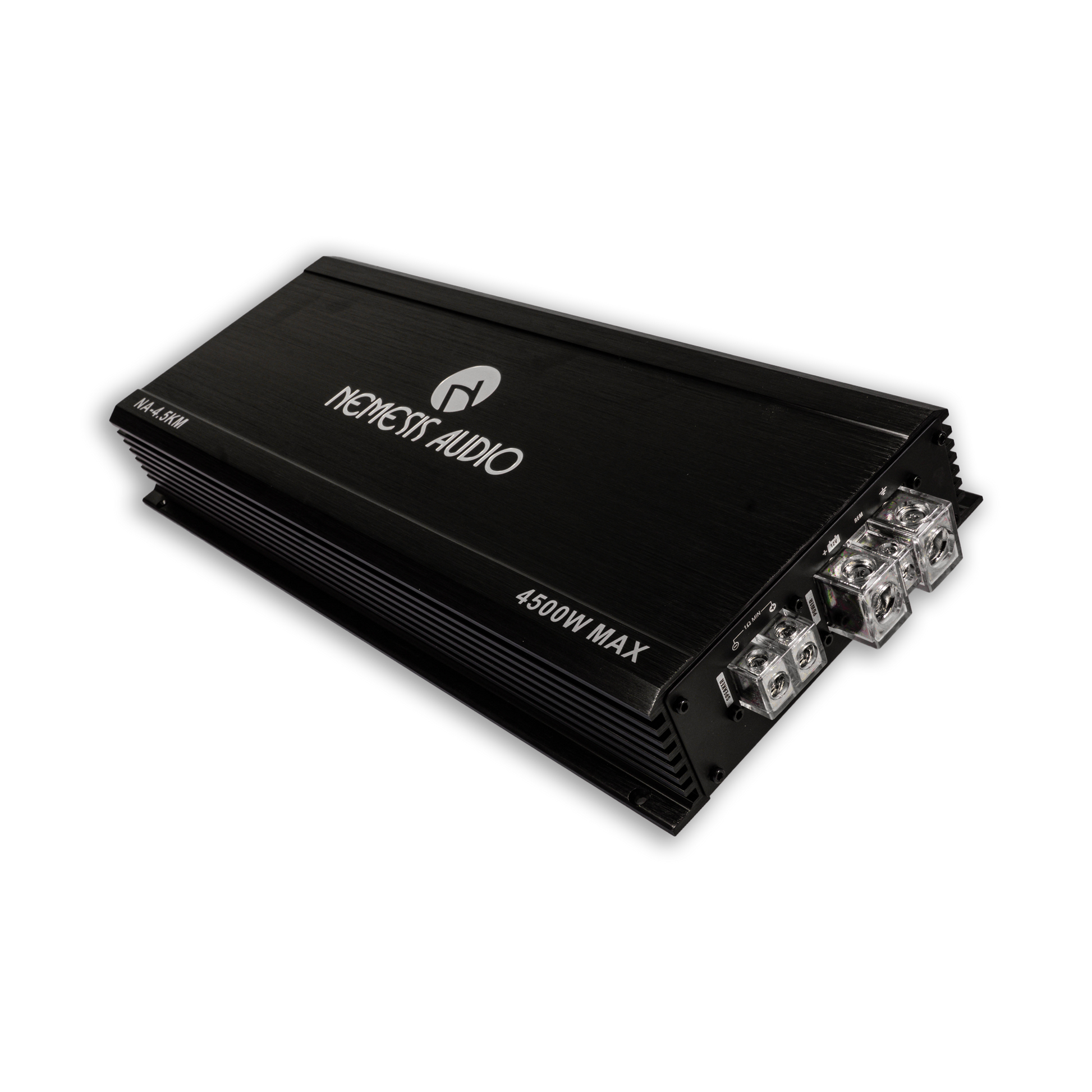

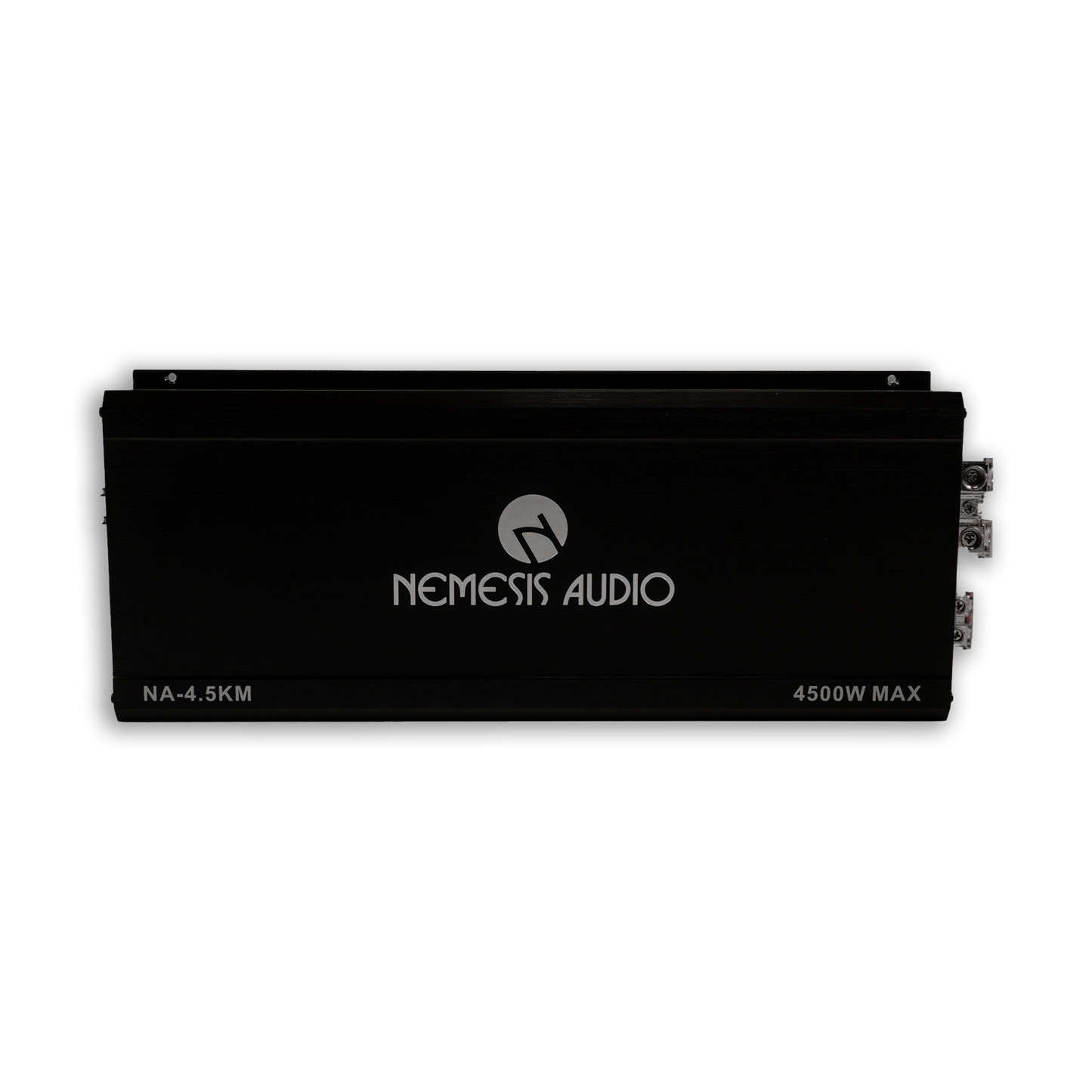

NA-4.5KM

2250W RMS Class D 1-Channel Car Amplifier

RMS / MAX @ 4-Ohm: 1000W/2000W
RMS / MAX @ 2-Ohm: 1500W/3000W
RMS / MAX @ 1-Ohm: 2250W/ 4500W
Input Level – 0.2V–5V
Frequency Response: 8Hz–180Hz
LPF: 40Hz–180Hz
Subsonic Filter: 5Hz–50Hz
Bass Boost Frequency: 30Hz–80Hz
Bass Boost Level: 0-12dB
THD at 4 Ohm load 30% Rated Power: <0.2% Signal to Noise Ratio: >70dB
Best Efficiency: >85%
Minimum Load: 1-Ohm
Dimensions (LxWxH): 416.5x185x55mm
