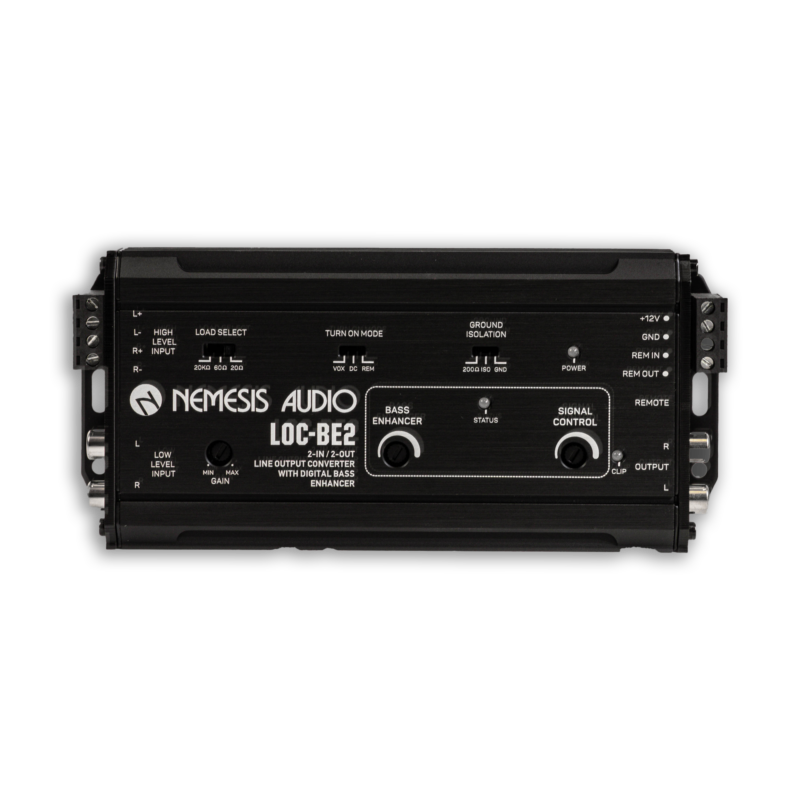

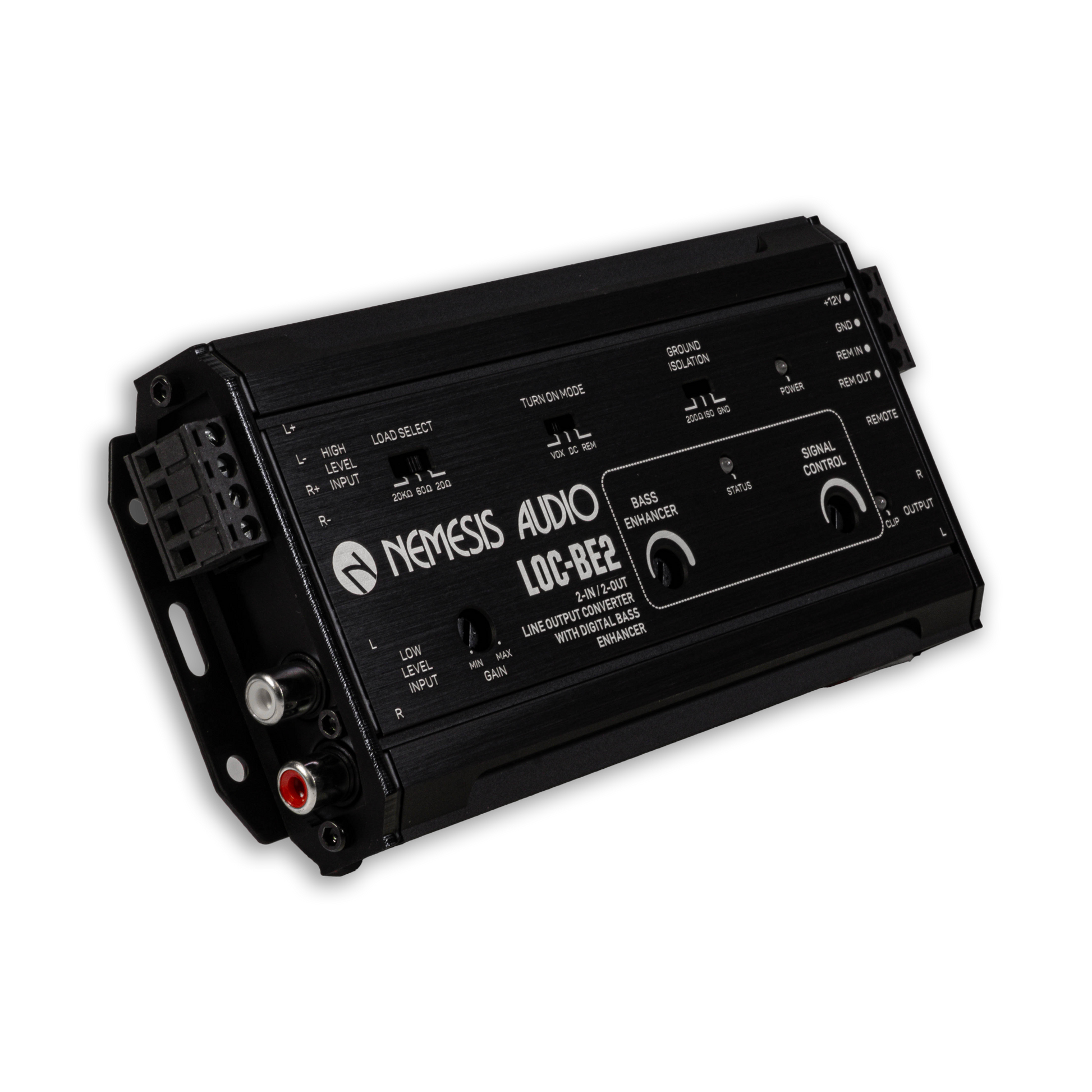

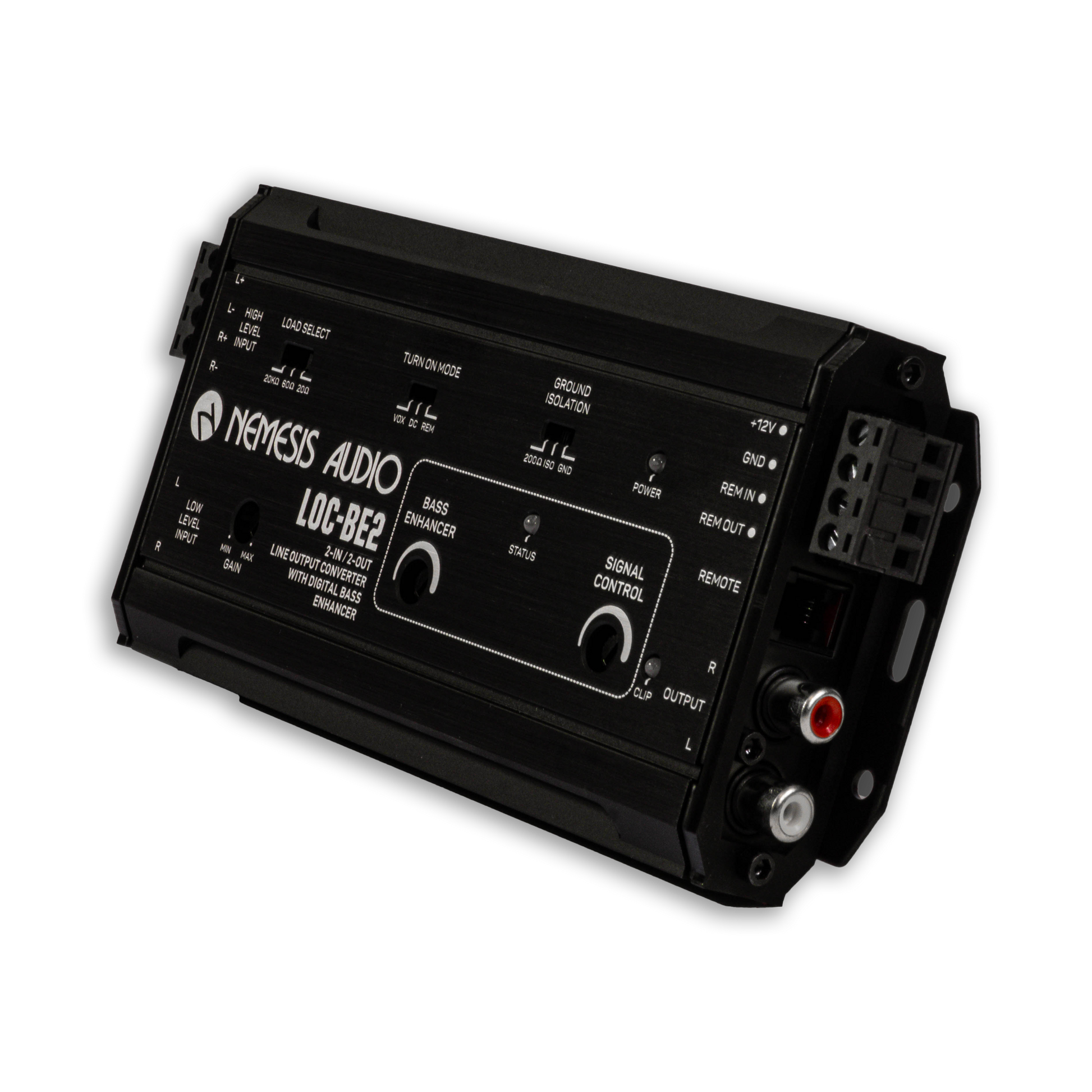

LOC-BE2

2-In / 2-Out Line-Output Converter with Digital Bass Enhancement Processor

Active 2-Channel Line Output Converter and Line Driver
Designed for Use with Factory and Aftermarket Audio Systems
Speaker-Level Inputs Handle Up to 30V
Low-Level RCA Inputs Handle 150 mV – 2 Volts
RCA Outputs Provide up to 9.5 Volts of Output
Adjustable BOOST to Correct for Bass Roll-Off
Auto Turn-On via DC Offset or Audio Detection
Load Selection Switch (20, 60, or 20K Ohms) to Prevent Factory Stereo Shut-Down
12 Volt Turn-On Output for Aftermarket Amplifiers
Selectable Ground Isolation Switch to Eliminate Ground and Alternator Noise
Molex Terminals for Speaker Signal and Power
Wired Remote Bass Level Control Included
LED Clip Indicator
Total Harmonic Distortion: 0.01%
Signal to Noise Ratio: >105dB
Frequency Response: 10-25,000Hz
